Dual Port 400GE QSFP-DD PAM4 Module

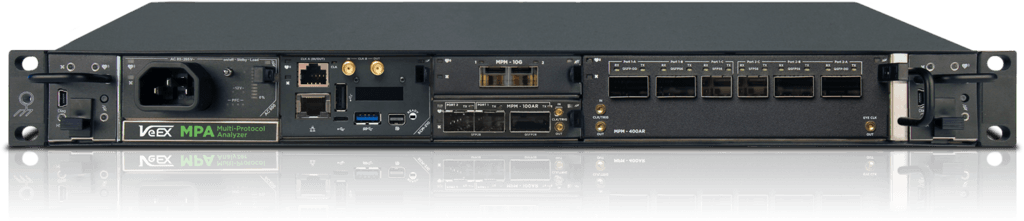

Applications Network equipment, systems, and IC development Transceiver validation Design verification and system testing (SVT) Production and manufacturing test Network verification and service delivery Key Features 2x 400G port Ethernet testing per IEEE 802.3bs QSFP-DD transceivers and cables with I2C read/write up to power class 8, >14 watts 8x50G PAM4 400GAUI-8 electrical interface Physical layer & PAM4 signal integrity testing Comprehensive KP4 FEC layer stressing and analysis MAC/Ethernet/IP layer throughput & traffic verification Multi-Lane Unframed BERT/PRBSQ PAM4 pattern testing 2x port QSFP56 & 2x SFP56 ports for additional testing capability General The MPM-400AR is based on an advanced programmable native PAM4 FPGA design which provides best signal integrity and future proof hardware to support current and emerging testing applications. Supporting multiple test automation APIs including native Python provides NEMs R&D/SVT labs, manufacturing, and service providers with a comprehensive all-in-one toolset for verification of next generation PAM4 Ethernet/transport technologies. The 400G MPM-400AR may be used in the modular MPA platform with existing 10/100G application modules providing simultaneous, independent, multi-port test capability from 400Gbps to 10Mbps.
