XenaBay chassis B720/2400

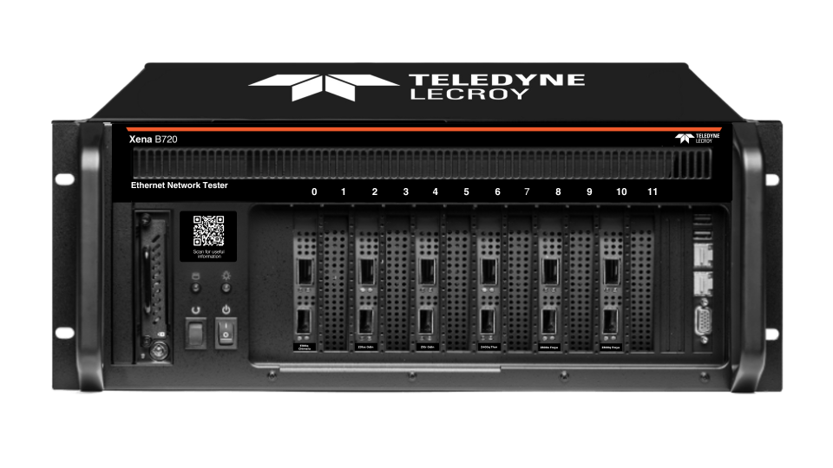

XenaBay chassis B720/2400 The XenaBay offers ultimate configuration options making it possible to deploy a wide range of test module configurations in the same XenaBay chassis. In the B720 chassis users can make configurations ranging from 10Mbps to 10Gbps with modules from the Odin series. There are 2 versions of the Xena chassis: the standard B720 and the high-performance B2400. The B2400  is required for these TGA test modules: Z800 Freya, Z400 Thor,  Z100 Loki as well as the Chimera network emulation module: E100 Chimera. In the B2400 users have the ultimate flexibility, making it possible to make configurations ranging from 10Mbps to 800Gbps utilizing all available modules from the Xena product series. Both XenaBay’s has 12 avaiable slots for test modules, and each module series occupies the following slots in the chassis’: Z800 Freya 2 slots (2 slot module) Z400 Thor 3 slots (2 slot module 1 slot for mandatory airflow guide) Z100 Loki 1 slot module (max. configuration is 9 modules, in blocks of max. 3 modules). E100 Chimera 1 slot module (max. configuration is 9 modules, in blocks of max. 3 modules). Z10 Odin 1 slot module Example: 1 x Z800 Freya (2 slots) 1 x Z400 Thor (3 slots) 3 x Z100 Loki (3×1 Slots) 4 x Z10 Odin (4x1Slot) For ultimate utilization of slots in the B2400, consider where multi-slot modules are installed.
