KE801 copper & fiber optic

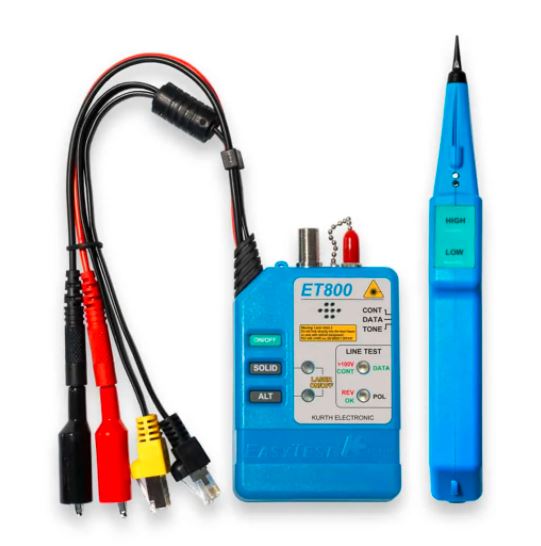

ET800 copper & fiber optic search signal transmitter Flexible test cord 25 cm Test cord connection 2x banana with alligator clips 1x RJ11 plug 1x RJ45 plug Additional test interfaces 2.5 mm universal fiber optic ferrule coax F socket Functions Continuity test with LED tone Resistance test by changing frequency Low batt display by flashing LED Automatic switch-off after 45 minutes. Deactivation of switch-off Device switch -on control with LED display ALTERNATING FREQ. with blink. LED display SOLID Freq. with upright LED data port test through port finder function laser light source (VFL) Search frequencies 6 frequencies selectable SOLID: 1000, 2600, 577.5 Hz and ALT: 1000/800, 2600/1900, 577.5 Hz pulsating Accuracy <± 1% (quartz) Range Maximum cable length up to 15 km without load Sound on short-circuited wire up to 250 m Transmission power High transmission power with 9 V battery 9.0 V PP without load 10 dBm at 600 ohms 9 dBm at 100 ohms 7.5 dBm at 50 ohms Overvoltage protection 500 volts DC / 350 V AC Dimensions / weight 68 x 96 x 25 mm / 150 g without battery Additional features Strain relief of the test leads gold plated contacts Separate battery compartment KE301 – KE801 General Specifications Power supply 9 V battery > 100 hours of operation casing Stable, impact-resistant and weather-resistant ABS housing with silicone actuation buttons P410 sample Functions 1 kHz filter signal LED flashlight function ISDN filter signal LED Range Search distance to the cable 100 cm Dimensions / weight 220 x 40/34 x 25 mm / 80 g without battery Additional features Non-conductive test probe made of carbon fiber reinforced plastic. 3.5 mm headphone socket. Gold-plated contacts. Separate battery compartment
