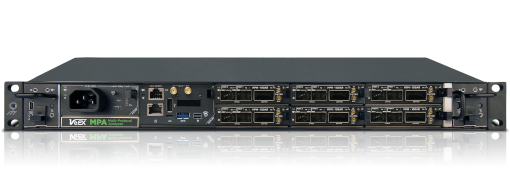

MPA®Multi-Protocol Analyser Modular Test Platform

Ethernet/IP Traffic Generation & Analysis Full line rate layer 1-4 multi-stream, throughput, frame loss, latency, packet jitter, and BERT characterization PCS & RS-FEC layer testing RFC 2544 and Y.1564 compliance testing Service disruption time (SDT) measurement OTN Traffic Generation & Analysis OTL and FEC layer testing Multi-Channel OTN testing with support for parallel testing of up to 80xODU0s Advanced multi-stage OTN multiplexing with Ethernet, GFP, Fibre Channel, SDH, & PRBS clients Complete overhead/trace generation and analysis with byte capture Thru mode with error & alarm stimulus testing Service disruption time and delay measurements SONET/SDH Traffic Generation & Analysis Multi-Channel SDH testing with support for parallel testing up to 192 channels PRBS and GFP/Ethernet mapping clients Complete overhead/trace generation and analysis with byte capture Thru mode with error & alarm stimulus testing Pointer & APS sequence generation and analysis Service disruption time and delay measurements Fibre Channel Traffic Generation & Analysis Full line rate throughput, frame loss, latency and BERT characterization FEC layer testing Fibre Channel switch login and performance verification with FLOGI/PLOGI Buffer-to-buffer credit and flow control analysis Service disruption time measurement Transceiver & Physical Layer Testing QSFP-DD, QSFP56, QSFP28, QSFP , CFP8, CFP4, SFP56, SFP28, SFP , SFP module verification Unframed BERT for signal integrity testing Transceiver and MDIO/I2C testing Transceiver module health check feature High speed lane clock stressing/analysis and optical power level verification
