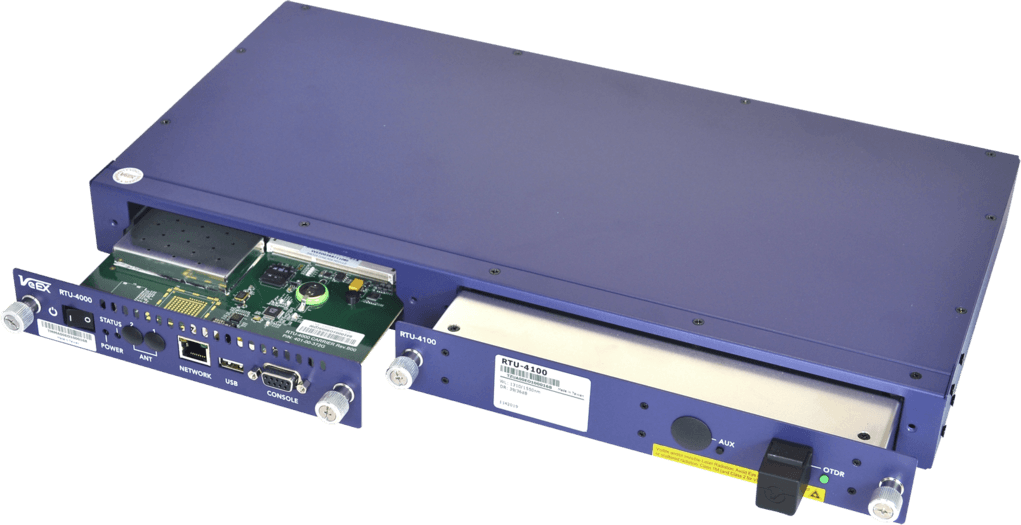

Remote Fiber Monitoring System RFTS

Up to 500,000 sampling points with 3 cm resolution OTDR test port equipped with live fiber detection for monitoring P2P or PON networks Out of service/dark fiber testing at 1310, 1550, 1625, or 1650 nm In-service testing using filtered 1625 nm or 1650 nm OTDR test ports fitted with fixed or universal connectors Built-in launch fiber Up to 50 dB dynamic range Event dead zone < 1m, Attenuation dead zone < 4m typ. Telcordia SR-4731.sor trace format V-Scout fiber characterization using multiple acquisitions complete with link map and event tables Optional Optical Power Meter (OPM) for level measurement Proactively monitor network fibers in real-time, 24/7 On demand OTDR testing can be automatically triggered by RF or Ethernet probes within VeSion system VeSion server integration compatibility OSS integration using SNMP Secure connection (HTTPS) support SMS, email alerting Scalable up to 128 ports in a single rack mount configuration Cascaded configurations for higher port counts supported Connectivity via 10/100 Base-T Management interface Supports dual input AC/DC or -48V DC powering options Optional SD card up to 256 Gbyte for data storage Optional 3G/LTE mobile modem for backup communication Web Browser access for standalone configuration/operation Software Programming and Application support HTTP JSON API (language and framework) HTTP API configuration/operation using embedded HTTP server
